Exterior Features

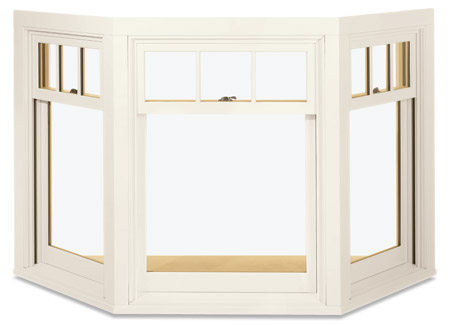

• Construct a Bay window from Ultimate Double Hung or Ultimate Casement windows to match the style of your home.
• Bay windows are available in wood or clad-wood.
• Low-maintenance, clad-wood products are available in five standard, fourteen select and unlimited custom colors.
• Select an exterior casing option to enhance the profile of your Bay window.

WOOD SPECIES

Wood is a product of nature and will vary in color, texture and grain. The wood options shown above are to demonstrate the approximate look of each species only. The photos are not intended to reflect a product’s interior or exterior profile.

Pine (Standard)

Primed Wood

Mahogany

Vertical Grained Douglas Fir

CLAD COLOUR OPTIONS

Marvin’s low maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking.

Bronze

Stone White

Evergreen

Pebble Gray

Bahama Brown

Artic White

Sierra

Coconut Cream

French Vanilla

Cashmere

Desert Beige

Cumulus Gray

Cadet Gray

Cascade

Cobalt Blue

Hampton Sage

Sherwood Green

Wine Berry

Ebony

CUSTOM COLOURS

Any colour. Any window or door. You name it.

No matter what your inspiration for a custom window or door colour, Marvin® will match it. You get any colour your heart desires, with your own personal custom colour name and a 20-year warranty.

Interior Features

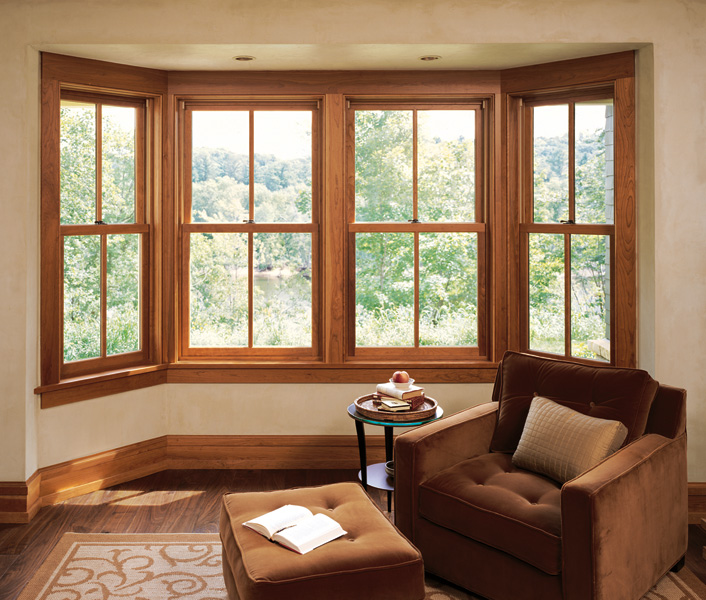

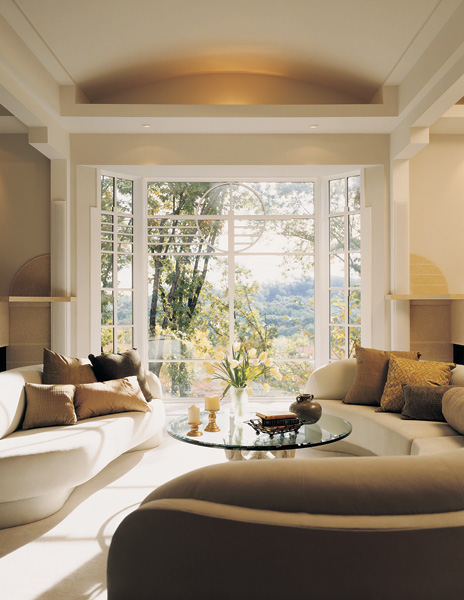

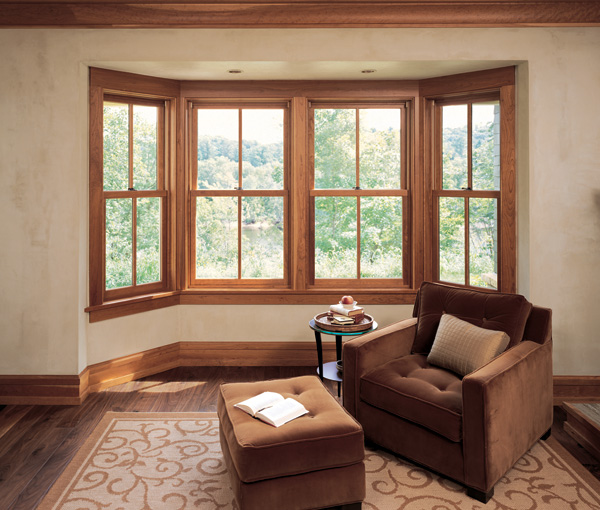

• Nothing invites the outdoors in like a combination of windows set into a Marvin Bay.
• Laminated head and seat boards can be cut specifically by Marvin for your Bay window to ensure a perfect fit.
• Construct a Bay window from Ultimate Double Hung or Ultimate Casement windows to match the architectural style of your home.

WOOD SPECIES

Pine

Douglas Fir

SELECT

Painted Interior Finish

Cedro Macho

Mahogany

Cherry

White Oak

Vertical Grain Douglas Fir

Primed Wood

Standard Hardware, Finishes and Screens

Traditionally, Bays are made from three windows: a large picture window flanked by smaller windows on the sides that are set at 30º, 45º, 60º or 90º degree angles. Marvin Bays can be made out of any number of windows, placed at nearly any angle you can imagine. View Ultimate Double Hung or Ultimate Casement windows for more details on hardware, hardware finishes and screens.

Retrofit Return Option

The Retro Fit Bay and Bow Return for Square Jamb Application option allows for a projecting window to replace a standard rectangular window. The return simplifies installation because it conforms to the 90° angle of the existing opening. This makes it easy to set a dramatic bow or bay window into an existing, standard square opening.

• Can be installed into a standard square opening in either new construction or renovation projects
• Is available in a variety of angles
• Makes measurement and prep of the opening easier
• Factory-applied insulation between jamb and interior return improves thermal performance

Glass Options

Marvin offers a range of standard, performance and specialty glass options:

Performance Glass Options

Glazing options such as LoĒ2-272® and LoĒ3-366® enhance energy performance. Tripane glazing, available with argon or krypton gas, provides excellent energy performance. Tripane features two coated panes of glass with a third pane spaced between them. It’s available with LoĒ2-272 on both panes, with LoĒ-179 on both panes for high SHGC, or with LoĒ3-366 on the exterior pane and LoĒ-179 on the interior pane for low SHGC. Tempered and laminated glazing options are available to meet special safety and impact requirements.

DIVIDED LITE PATTERNS

Marvin’s custom capabilities allow us to create almost any divided lite pattern you can dream up. Below are some of the most frequently-requested:
